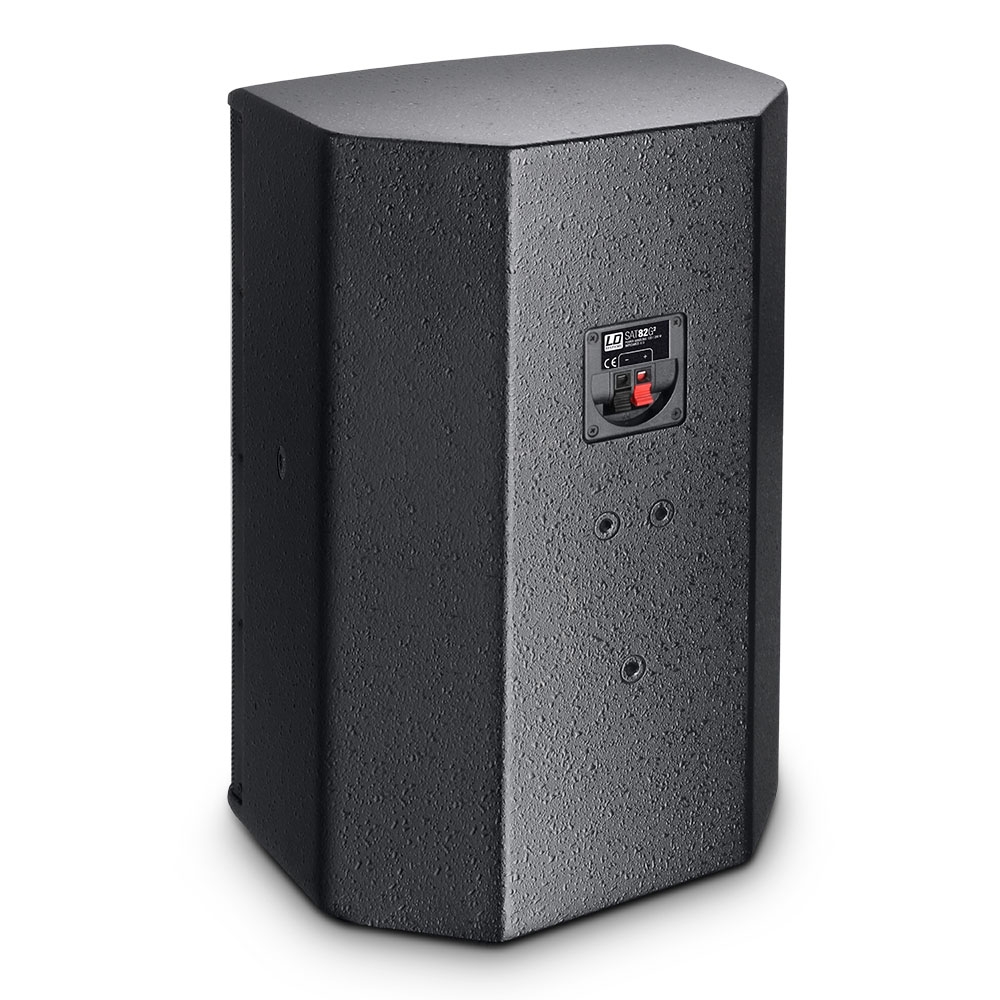

LD Systems SAT 82 G2

Popis

The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.

The bass-reflex design is loaded with an 8" custom woofer and a 1“ silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz - 20 kHz with a dispersion angle of 60° and attain a maximum sound- level pressure of 114 dB. The LD SAT82G2 is rated for a RMS power load of 120 W.

The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.



Product type: Installation Loudspeakers

Type: Wall-mounted Loudspeaker

Low/mid driver dimensions: 8 "

Woofer Size: 203 mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

HF driver dimensions: 1 "

HF Driver Size: 25 mm

HF driver magnet: Ferrite

HF driver brand: Custom-made

Dispersion (H x V): 60 x 60 °

Load rating (RMS): 120 W

Frequency response: 50 - 20000 Hz

SPL (1W/1m): 93 dB

Max. SPL: 114 dB

Impedance: 8 Ohm(s)

Protection circuits: HF Driver

Loudspeaker inputs: 1

Speaker input connections: Clamp connector

Cabinet material: 15 mm MDF

Cabinet surface: texture paint

Cabinet colour: black

Cabinet construction: vented

Width: 274 mm

Height: 410 mm

Depth: 243 mm

Weight:7 kg
